A-Clamp Connectors

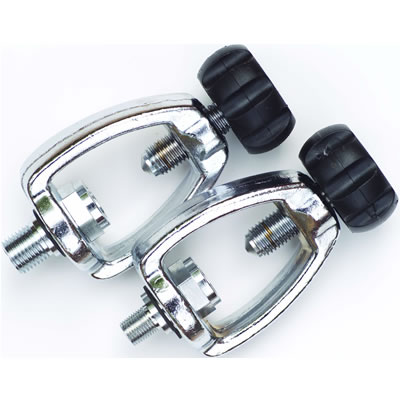

H012000 – A-Clamp x 1/4 BSPPM charging connector. 60° Internal Cone connects directly to a 1/4 BSPF compressor charging hose. May be used as a replacement connection for our Stop/Vent Charging Valves. Maximum working pressure of 232 Bar.
H012009 – A-Clamp x 1/8 BSPPM charging connector,60° Internal Cone connects directly to a 1/8 BSPF charging hose.Maximum working pressure of 232 Bar.

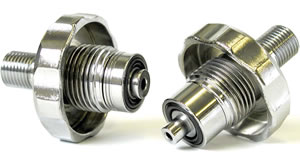

DIN Connectors
H012500 – DIN 200/232 Bar 5/8 BSPM x 1/4 BSPPM charging connector. 60° Internal Cone connects directly to a 1/4 BSPF compressor charging hose. May be used as a replacement connection for our Stop/Vent Charging Valves. Maximum working pressure of 232 Bar.
H029000 – DIN 300 Bar 5/8 BSPM x 1/4 BSPPM charging connector. 60° Internal Cone connects directly to a 1/4 BSPF compressor charging hose. May be used as a replacement connection for our Stop/Vent Charging Valves. Maximum working pressure of 300 Bar.
M020201 – DIN 200/232 Bar and 1/4 BSPP female port. High quality chromed brass DIN handnut.
M020202 – DIN 300 Bar and 1/4 BSPP female port. High quality chromed brass DIN handnut.
Charging Converters

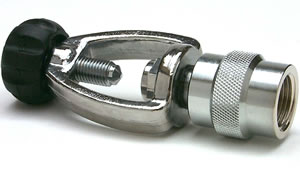

H013300 – Our DIN 200/232 Bar 5/8 BSPM x A-Clamp block charging converter allows you to fill a DIN232Bar cylinder from an A-Clamp hose. Chromed brass finish.
H020900 – Our A-Clamp x DIN 200/232 Bar 5/8 BSPF charging converter allows you to fill an A-Clamp cylinder from a DIN 232 Bar hose. Chromed brass finish.
BOC Bullnose Connector
H019900– BOC Bullnose 5/8 BSPM x 1/4 BSPPM charging connector. 60° Internal Cone connects directly to a 1/4 BSPF compressor charging hose.
