Line Valves

Line Valves and Stop/Vent Line Valves

The range of MDE Line Valves and Stop/Vent Line ValvesĀ have a maximum working pressure of 414 Bar/6000 PSI, and provide mounting versatility – either inline or as part of a panel using the included locknut.

Line Valve

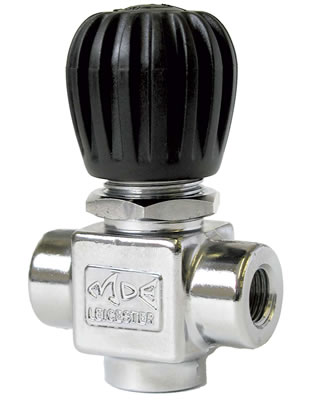

H013800 – High quality chromed brass Line Valve, with 1/4 BSPTF inlet and outlet, offering oustanding reliability through simple design.
H013810
– Line Valve Refurbishment Kit contains:

  • 1 x G011303M O-Ring
  • 1 x G011306 Seal Washer
  • 1 x G011307 O-Ring
  • 1 x G011308 Anti-Friction Washer
  • 1 x G028603 Brass Threaded Seat, Complete

Stop/Vent Line Valve

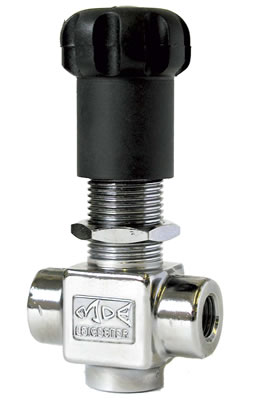

H031200 – High quality chromed brass Stop/Vent Line Valve, with pull-to-vent handle and 1/4 BSPTF inlet and outlet. Venting action releases only the air between the cylinder and valve, keeping the pressure to your line and panel.
H039650B – Stop/Vent Line Valve Refurbishment Kit contains:

  • 1 x G011303M O-Ring
  • 1 x G014905 Anti-Friction Washer
  • 1 x G014908 Pressure Seal
  • 1 x G028603 Brass Threaded Seat, Complete
  • 3 x M012103 O-Ring
