Gun Charging Parts and Accessories

Gun Charging Hoses

Replacement high pressure microbore hose for Airgun Charging Cylinders and Diving Cylinder Systems. Provides a standard 1/8BSPF outlet for rifles including Air Arms and Daystate.

M012912 – Gun charging microbore  hose 500mm with 1/8 BSPPF connections and anti-kink spring.
M012911-1 – Gun charging mircobore hose 1m with 1/8 BSPPF connections.

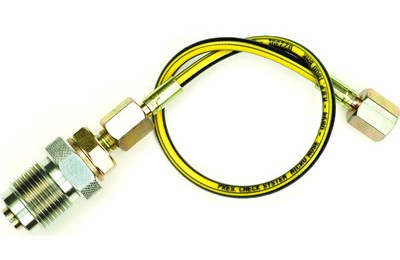

H012910
– Hose assembly, complete with (H041795 DIN male, M013718 Bonded seal, M013717 male/male adaptor and M012911 Charging hose ). Designed for our Airgun Charging Cylinders, this hose assembly fits directly into our Airgun Valve and provides a standard 1/8BSPPF outlet for rifles including Air Arms and Daystate.

Gauges

M012907 – Gauge 0-315 Bar (4600 PSI) 1/4 NPT Bottom entry 50mm (fits DIN and A-clamp charging systems).

G021359 – Gauge 0-270 Bar (4000PSI) 1/8 BSPT Back entry 40mm (fits 232 pre Jubilee range, gun valves).

G021377 – Gauge 0-400 Bar (5800PSI) 1/8 BSPT Back entry 40mm (fits 300 pre Jubilee range, gun valves).

L100005 – Gauge 0-400 Bar (5800PSI) 1/8 BSPP Back entry 40mm (fits older Jubilee gun charging range).

L100031 – Gauge 0-400 Bar (5800PSI) 1/8 BSPP Back entry 40mm, with pin and O-Ring seal (fits newer Jubilee gun charging range).

Seals and Adaptors

M035706 – Bonded seal 1/8 BSP.
M013703
– Bonded seal 1/4 BSP.
M012701
– Acetal seal 1/4 BSp. (4.75mm Thick white).
M012908
– Adaptor 1/8 x 1/8 BSP Male/Male 60° internal Cone.
M013717
– Adaptor 1/4 x 1/8 BSP Male/Male 60° internal Cone.
M013718
– Adaptor 1/4 x 1/4 BSP Male/Male 60° internal Cone.
M041000
– Adaptor 1/8 BSPM x 1/4 BSPF (includes seal).
H041795
– DIN Male x 1/4 BSPPF including Acetal Seal (Rapid 7 – Super10 Adaptor).
H013301
– A-Clamp block with 1/4 BSP Female with seal (for buddy bottle).
H012912
– Quick connector kit, comes complete with fittings and seals to fit both airgun and flexible hose (additional male ends available for those who have more than one airgun).

Bleed Screws

H029110 – Bleed Screw including insert.

M015030a – Insert of Bleed screw only.
